From Peter Cornelius - Triumph Specialist for the VMCC - of Britain.

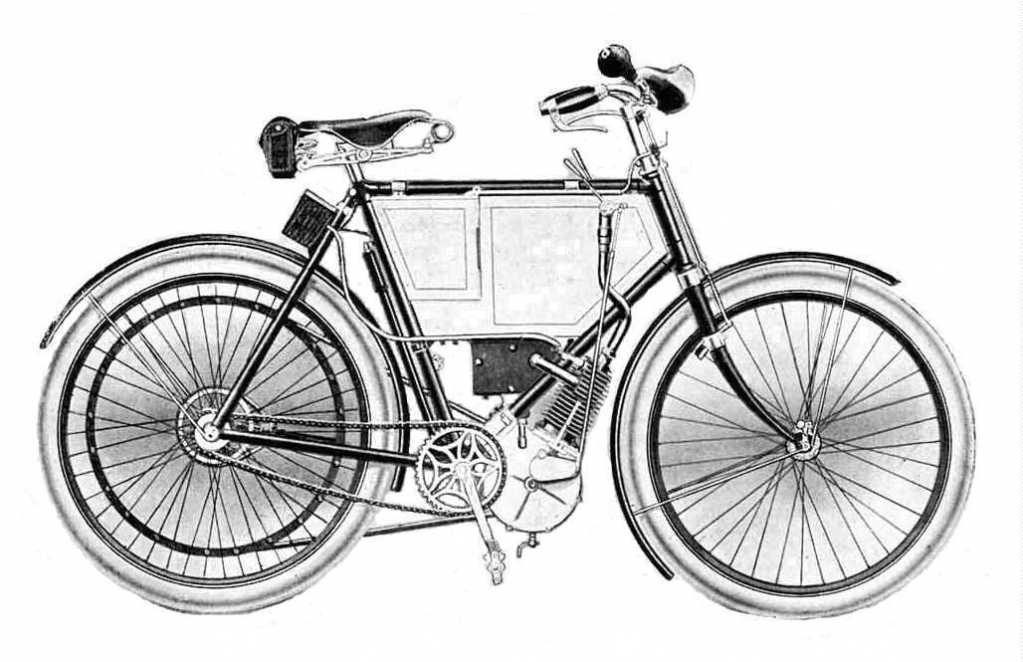

1903 JAP-engined Triumph
|
Siegfried Bettmann, the founder of the Triumph Cycle Company, was not a cycling or motor cycling enthusiast. He was 'just' a very astute businessman. He wished to start a business of his own, rather than forever being the overseas representative for the White Sewing Machine Company, and he saw his opportunity with the introduction and growing popularity of the 'safety bicycle' (velocipede). He first sold other manufacturers' bicycles under his own name in 1887. After many failures he decided that the only way forward was to manufacture for himself.
Thus, to cut a long story short (read my 'Triumph Story' booklets for the unabridged version), he purchased property in Coventry and having obtained a reputation for quality and reliability he realised
further potential with the introduction of the cycle with an engine.
Knowing nothing about internal combustion engines, and neither did
his partner, Mauritz Schulte, despite what other books might tell you (he spent
two months with cycle manufacturer William Andrews in order to learn how
to assemble cycles), so the obvious way forward was to do as so many
other early manufacturers did - use a well known engine (the Belgian
Minerva) in a frame, which was something they did know how to do!
own name. (And
also marketing as a kit of parts.)
No pictures exist of Triumph's first, 1902, motor bicycle (it was
simply advertised by the name), although one actual machine has
survived, but due to a fire very early in its existance it was rebuilt
with later fuel tank, etcetera.

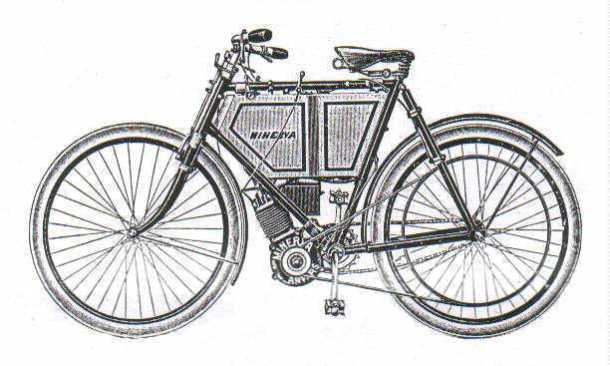

The picture of the 1902 Minerva above would have been very much as
Bettmann's first Triumphs would have looked, and simply with a
different name on the tank.
For 1903 Bettmann, most likely guided by his Workshop Manager,
Charles Hathaway, added a JAP (J.A. Prestwick) engined model, while

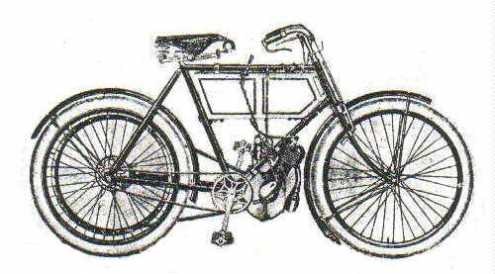

the Minerva-engined model became increased in capacity. (The 1903
Minerva-engined model pictured above is the picture declared in many
Triumph books to be a 1902 machine, but as I've explained, no
picture of a 1902 model exists.)
The Minerva engine was dropped for 1904. The JAP-engined model
continued, but Triumph put another ¼ hp on it in their
advertisements, and a German designed Fafnir engine was added to
bring the choice back to two different models.
|
1902 - Minerva engine, 211cc 1½ hp. 62mm bore X 70mm stroke.
1903 - Minerva engine, 239cc 2hp. 66mm bore X 70mm stroke.
1903 - JAP engine, 293cc 2¼ hp. 70mm bore X 76mm stroke.
1904 - JAP engine, 293cc 2¼ hp. 70mm bore X 76mm stroke.
(Advertised as 2½ hp for 1904.)
1904 - Fafnir engine, 376cc 3hp. 75mm bore X 80mm stroke.
............There was also a 3hp Fafnir engined three-wheeled Forecar model
for 1904. (Passenger seat at the front.)
Triumph, along with other early manufacturers, were 'feeling
their way', trying different engines before deciding the best way to
go. Triumph knew by 1905!
Belt drive, no gears. Pedal, or run and jump, and hope that the
controls were set so that the engine would start.
A 1902 advertisement for a machine bought earlier in the
year showed that for some people the engined cycle was too fast!
Any identification would have been a Triumph crest on the
headstock, as the cycles, and an "Imperial Triumph" transfer on the
fuel tank.
No roadside garages and fuel could be purchased from chemists.
If attempting to travel for any distance it was necessary to order
supplies ahead.
I have no idea of production or sales figures, but they set Triumph
off on the road to manufacture motor cycles more seriously.
I only have knowledge of Triumphs from this period surviving in
Australia and Britain.
For more details you really need to refer to the booklets I have written covering the Early Models and Part 1 of The Triumph Story.
